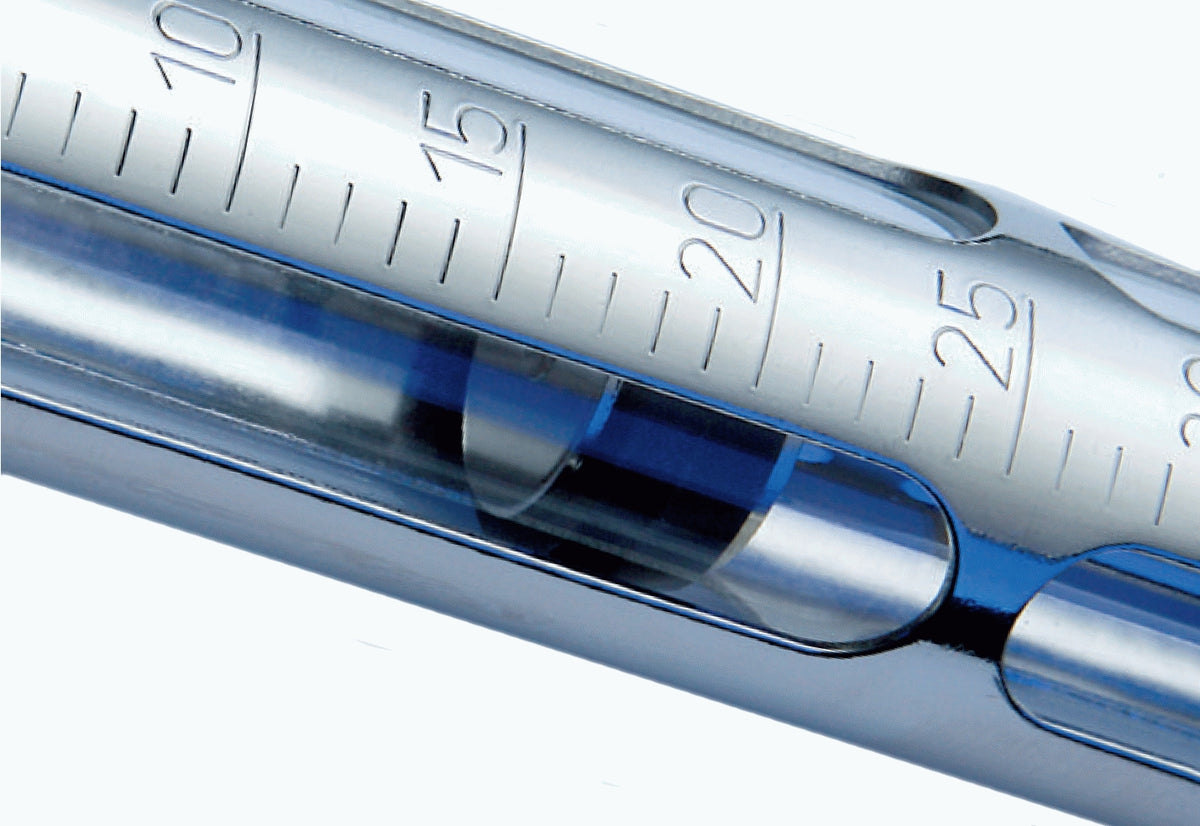

Roux glass 30 cc

Roux glass.

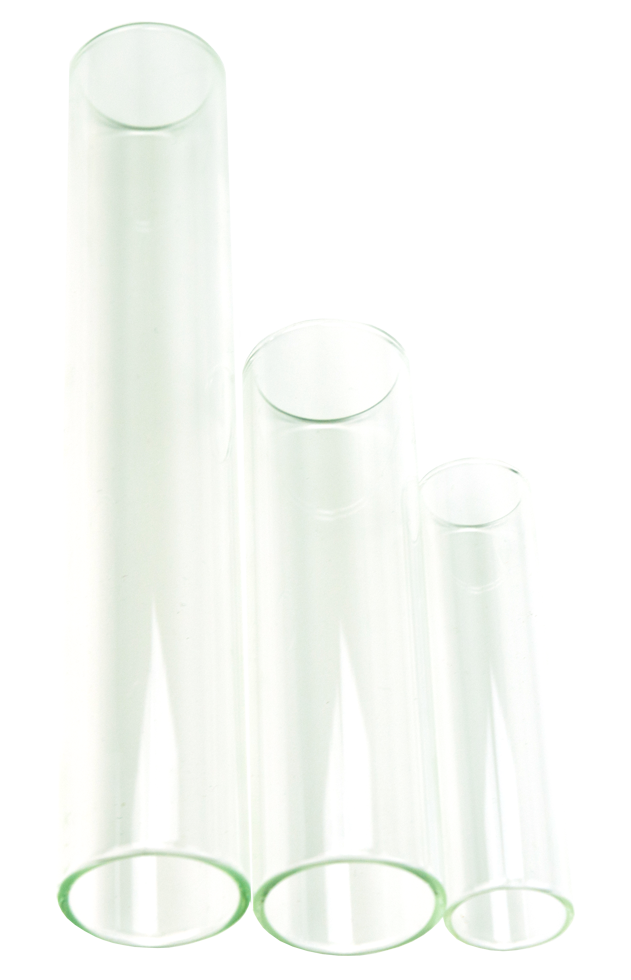

Size
ROUXA026: 10 cc
ROUXC026: 30 cc
ROUXD026: 50 cc

List of all components
1: ROUX0045 Handle – large with head
2: ROUX0005 Handle without transport hook
3: ROUX0007 Locking nut for handle
4: ROUX0035 Pressure spring for handle
5: ROUX0043 Ball under dosage regulator
8: ROUX0033 Tension knob (adjustment knob)
9: ROUX0048C Dosage regulator 1/5 for 30 cc
9: ROUX0049 Dosage regulator ¼ for 10 cc
9: ROUX0049A Dosage regulator ½ for 30 cc
9: ROUX0049B Dosage regulator ¾ for 30 cc
10, 16, 17: ROUX0008 Piston set 20 cc + needle ring
10, 16, 17: ROUX0009 Piston set 30 / 50 cc + needle ring
11: ROUX0027 Metal casing 10 cc
11: ROUX0030 Metal casing 20 cc
11: ROUX0042 Screw in dosage regulator
11: ROUX0046 Metal casing 30 cc
11: ROUX0050 Metal casing 50 cc
12: ROUXA026 Glass 10 cc
12: ROUXC026 Glass 30 cc
12: ROUXD026 Glass 50 cc
13: ROUX0032 Outer rod 10 cc
13: ROUX0040A Outer rod 30 cc (3/4 setting)
13: ROUX0040B Outer rod 30 cc (1/2 setting)
13: ROUX0041 Outer rod 50 cc
14: ROUX0022 Inner rod 10 cc
15: ROUX0031 Piston sealing plate 10 cc
15: ROUX0031A Piston sealing plate 30 / 50 cc
18: ROUX0036 Connection part screw 10 cc
18: ROUX0037 Connection part Luer Lock 10 cc
18: ROUX0038 Connection part Luer Lock 30 / 50 cc
18: ROUX0039 Connection part screw 30 / 50 cc
19: ROUX0051 Leaf spring under transport hook
20: ROUX0058 Screw through transport hook
21: ROUX0047 Transport hook

Other components:
ROUX0002: Dosage regulator locking screw
ROUX0021: Rubber needle ring
ROUX00V1: Outer rod 8 mm black extended syringe
ROUX00V2: Inner rod extended syringe 30 cc
ROUX00V3: Inner rod extended syringe 50 cc
ROUX00V4: Casing 20 mm black extended syringe
